Naming conventions

1. s_: Less Clock version
2. v_: Verilog special syntax

Flip Flop

RS Flip Flop

NOR

rs_flip_flop(input R, S, output Q, Qbar);

NAND

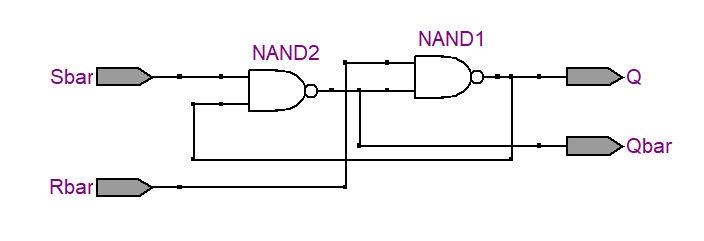

nand_rs_flip_flop(input Rbar, Sbar, output Q, Qbar);

Adder

Full Adder

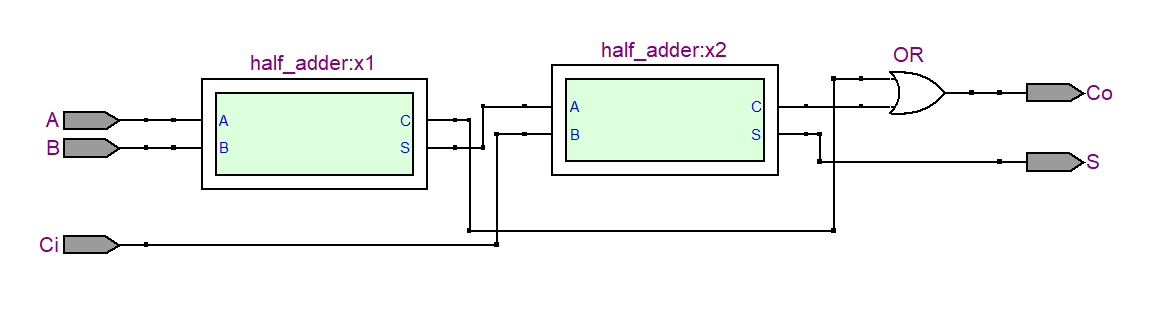

full_adder(input A, B, Ci, output Co, S)

Other implementations

module s_full_adder(input A, B, Ci, output Co, S);
  assign S = A ^ B ^ Ci;
  assign Co = (A & B) | ((A ^ B) & Ci);
endmodule

Verilog special syntax

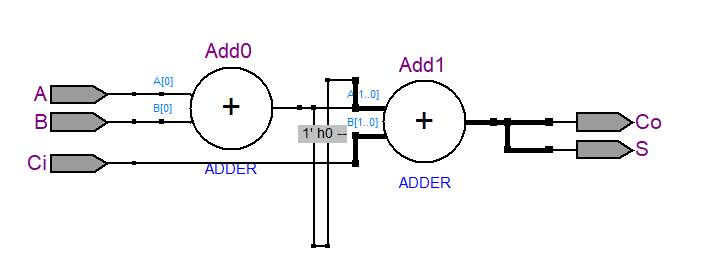

module v_full_adder(input A, B, Ci, output Co, S);
  assign {Co, S} = A + B + Ci;
endmodule

Half Adder

half_adder(input A, B, output C, S);
